Rohl Universal 4-port, 3-way Dedicated Diverter Rough Valve In Rough Only R1062BO

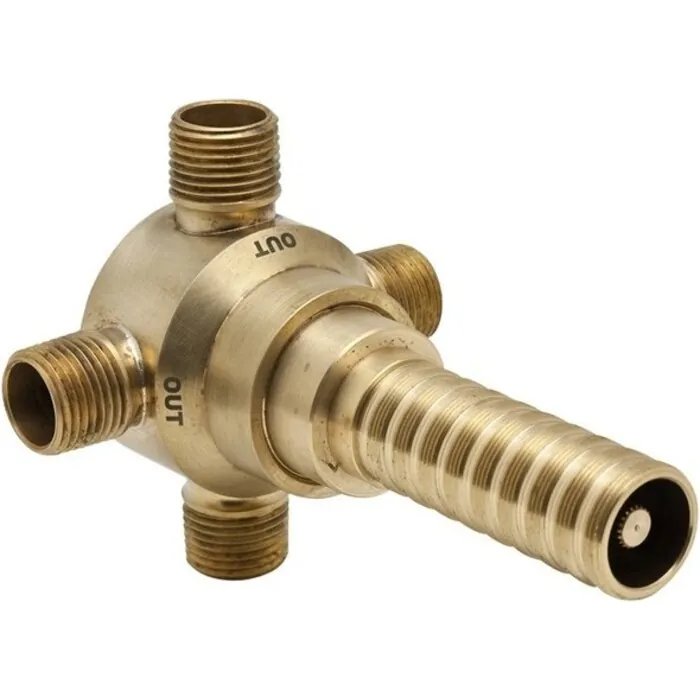

UNIVERSAL 4-PORT, 3-WAY DEDICATED DIVERTER ROUGH VALVE

• Must use with volume control(s) or pressure balance systems
• Ceramic disc control cartridge
• 1/2"M NPT inlet, 3 x 1/2"M NPT outlets
• Flow is dedicated. May not be split into two outlets at once.
• 2-Function operation available, order 9.13862 for alterte cartridge
• Outlets may be capped if not used
• CALGreen compliant
• 5 GPM
• Min. depth is 2 3/16" from the center of the outlet
• Max. depth is 4 11/16" from the center of the outlet
• Includes 2 5/8" extension kit.
• Extension may be cut to length required.
